PRODUCT DETAILS:
Technical Specification

Frequency Range: 694-703 MHz 748-758 MHz
Modulation Mode: FM
MAX Deviation Range: ±50KHz
AF Responses: 100Hz-10KHz
S/N ratio: >97dB
Sensitivity: >105dB
T.H.D: ≤5%(@1KHz)
AF Processing: Dynamic compression and extension technology
Effective Operating Range: 100m

CA-001U D Receiver
AF Output Impendence: 600Ω
Output Level: 0-300mv
THD: ≥85dB

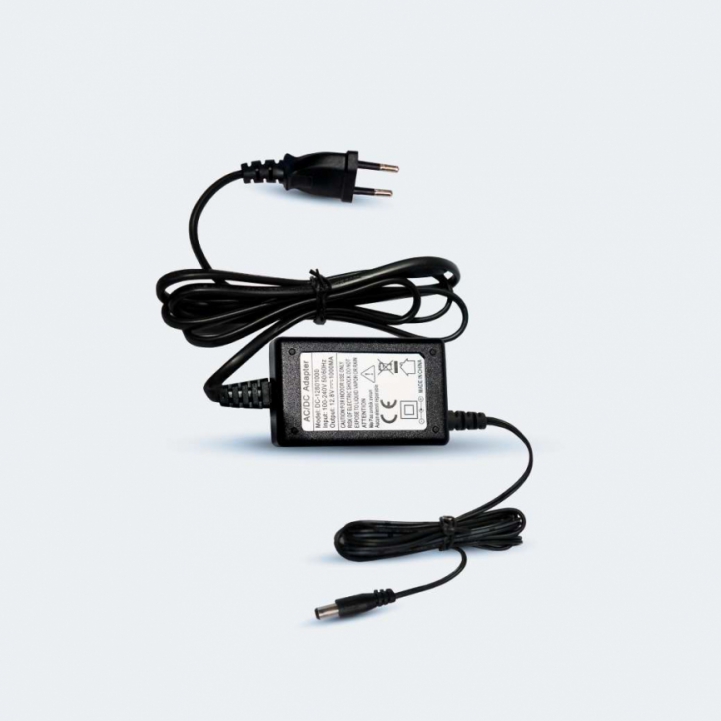

Power Supply: DC 12V 650mA

CA-8808B-D  Bodypack
Oscillation: PLLsynthesized
Frequency Stability: ≤±10ppm
MAXRegulation: ±50KHz MAX
Output Power: 30mw
Harmonic Radiation: <-55dBc
MAX Input Sound Pressure: 130dB SPL
Battery: AAsize
Size: 88x63x22
Weight: 0.14kg

CA-1810B Headset Microphone
Type: Condenser
Cartridge Diameter: Φ4mm
Polar Pattern: Omni-directional
Sensitivity: 18mv/Pal(-32dB+2dB)
Frequency Response: 100Hz~20KHz
Output Impedance: 1KΩ 30%
Max SPL: 130dB
Power: 2.0V-10V.DC
S/N: >64dB
Cable: 1.2M
