Technical Specification

Frequency Range : 694-703 MHz 748-758 MHz
Modulation Mode : FM
MAX Deviation Range : ±50KHz
AF Responses : 45Hz~18KHzt±3dB
S/N ratio : >97dB
Sensitivity : >60dB
T.H.D : ≤5%(@1KHz)
AF Processing : Dynamic compression and extension technology
Band width : 30Mhz

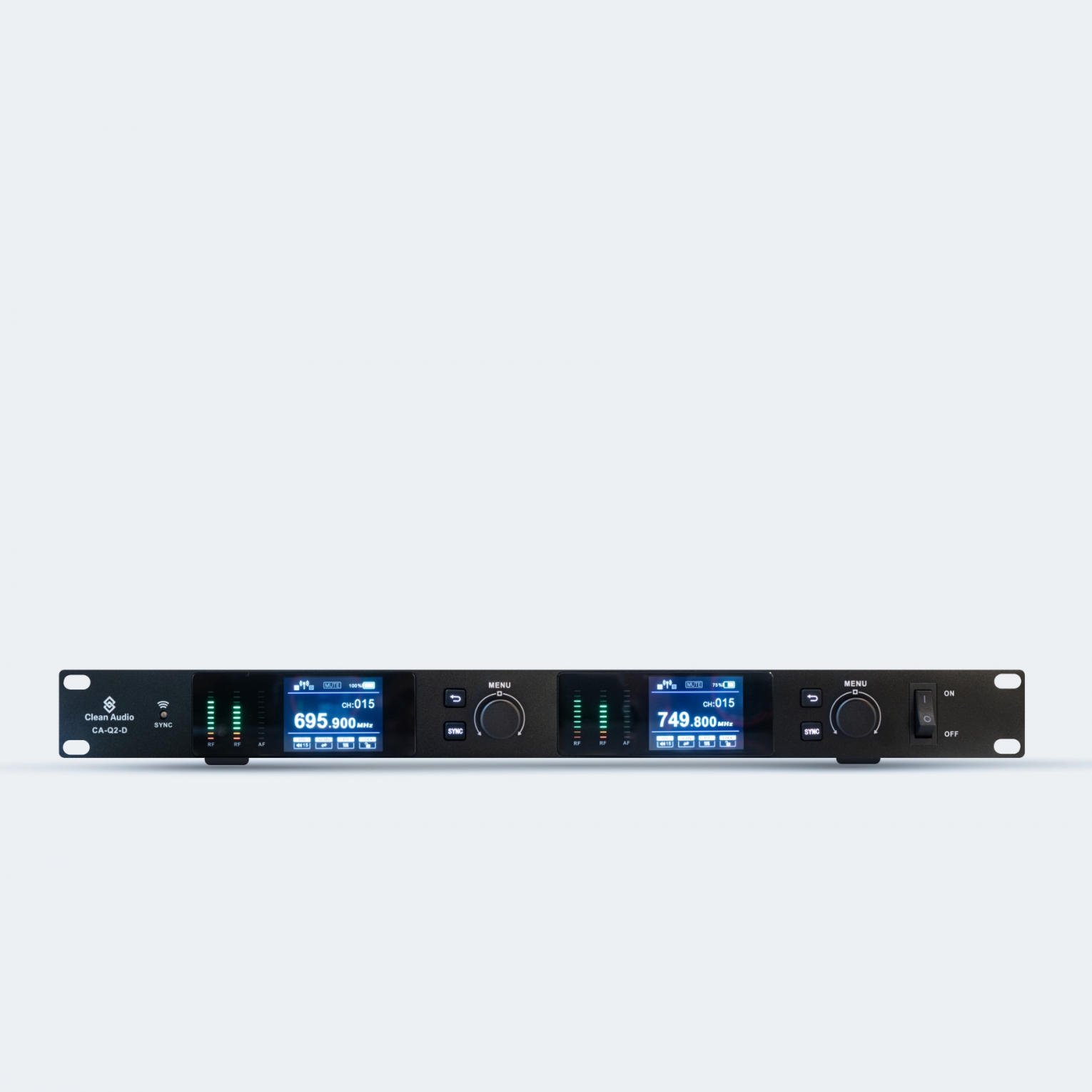

CA-D-2D Receiver
AF Output Impendence : 400Ω
Output Level : 0-300mv
THD : ≥85dB
Power Supply : DC 12V~16V 10W

DPA-1-D Handheld Transmitter
Oscillation : PLLsynthesized
Frequency Stability : ≤±10ppm
MAXRegulation : ±45KHz MAX
RF Output Power : 10mw/30
Harmonic Radiation : <-50dBc
MAX Input Sound Pressure : 130dB SPL
Pick-up Type : Dynamic(Handheld)
Battery : AAsize

MSC STD
Frequency Response : 32Hz—12KHz
Transducer principle : dynamic
Sound pressure level : 154 dB SPL
Pick-up pattern : Cardioid
Output Impedance : 400Ω (±15%)
Weight (N.W) : 50 g
