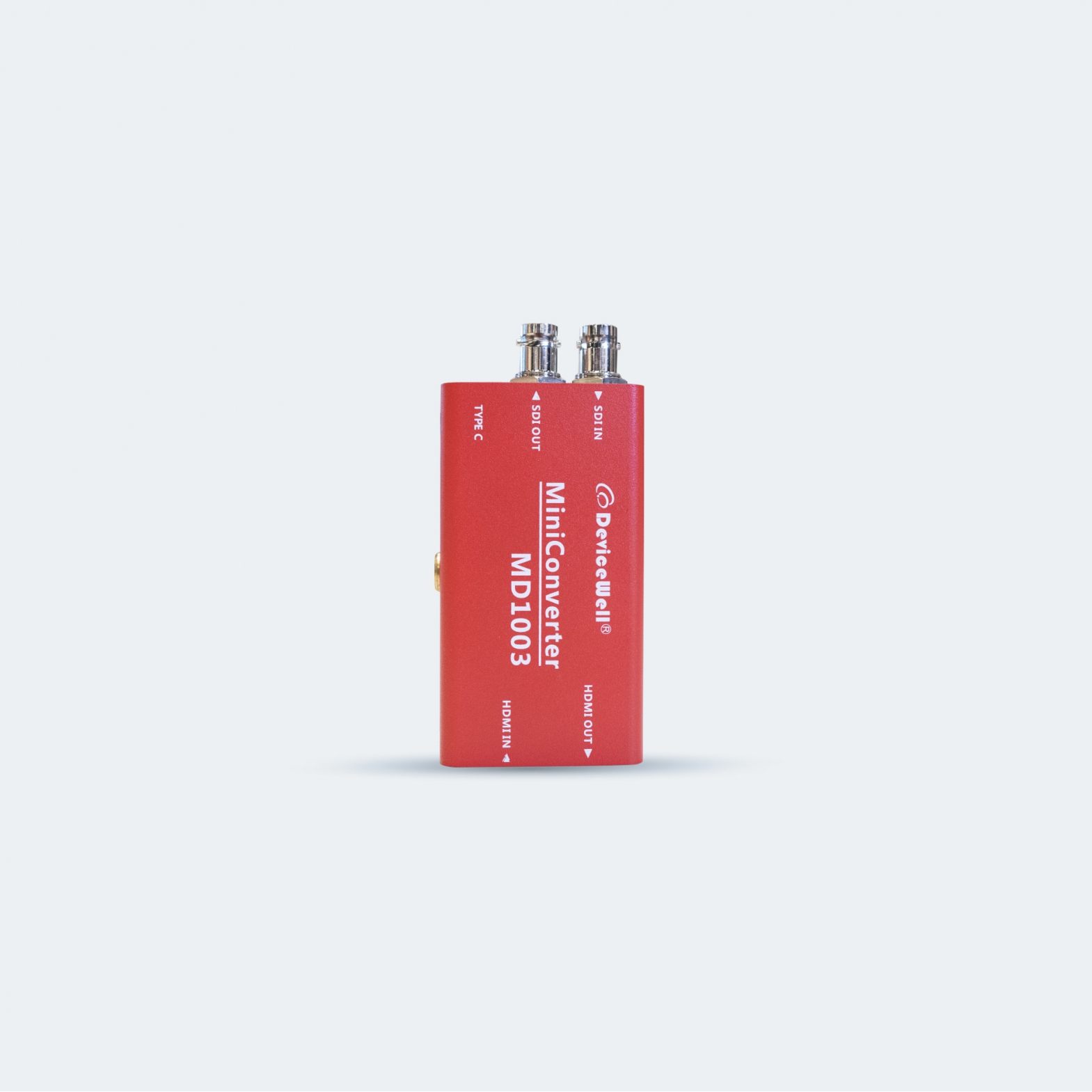

Devicewell HD video bidirectional converter based on FHD broadcast 3G SDI signal design. The SDI input supports
up to 3G SDI LevelA/B signals and is backward compatible with HD SDI and SD SDI. The HDMI input supports up to
1080P60, and is compatible with 1080I, 720P, 576I and 480I resolutions. MD1003 built-in SDI signal equalizer, SDI
decoder, SDI driver, HDMI decoder and HDMI encoder, can achieve SDI to HDMI and HDMI to SDI dual functions.
The device uses pure hardware architecture with fast startup, low power consumption and no delay output. It can be
widely used in professional broadcast television equipment, medical equipment, high-definition conference systems,
high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.
For signals that comply with the SMPTE standard, the device automatically detects the output and the input signal
remains at one point without additional settings. The device is equipped with a Micro USB interface. Users can obtain
status or upgrade software through the USB interface. The Micro USB interface is also used for power supply of the
device. It can be applied to USB mobile device power supply systems such as power bank. In addition, the equipment
is equipped with 1/4 hot shoe screw, which is convenient for professional users to fix equipment

Product Feature

Support SDI to HDMI and HDMI to SDI
SDI input supports 3G/HD/SD SDI
SDI supports LevelA & LevelB when inputting 3G
HDMI input supports 1080P/1080I/720P/576I/480I
Built-in professional grade equalizer and line driver
SDI / HDMI input adaptive
 SDI/HDMI output is consistent with the input
 1/4 hot shoe fixed screw
 Special features can be customized
